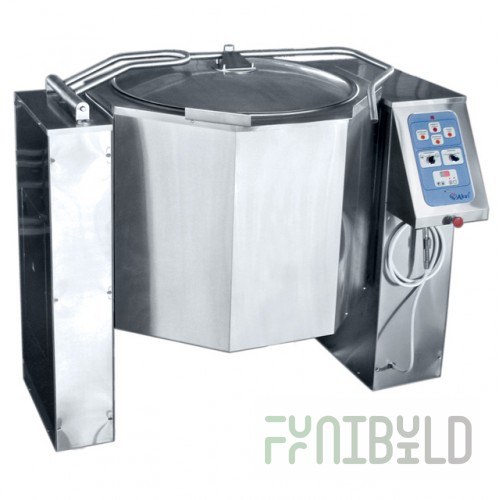

Abat KPEM-250-O food cooking kettle, 250 l, temp. 120 ° C, steam jacket, automatic tilting, programmable control, without mixer, solid-drawn vessel, 1460x1025x1735 in, 27 kW, 400/230 V The Abat KPEM-250-O food cooking kettle is used for processing food products and quickly preparing various first and second courses. With this model of kettle, you can easily get a large batch of broth, soup, sauce or porridge. The KPEM-250-O kettle can also be used to make light dough, paste, whipped cream and similar products. The kettle can be placed in the kitchen on its own or built into a professional technological line. The operating principle of the Abat KPEM-250-O food cooking kettle is extremely simple. The contents of the cooking container are heated with steam. This method of heat treatment of ingredients guarantees complete preservation of products and eliminates their burning. The steam jacket is responsible for steam generation. Its design consists of heating elements immersed in water. The heating of products in the cooking vessel of the boiler is brought to 120 ° C. The design of the cooking boiler includes the right and left support posts, the cooking vessel, the lid and the control panel. The boiler is also equipped with an electromagnetic valve that maintains the water level in the steam jacket and controls the pouring of water into the cooking vessel. The lid of the cooking boiler is equipped with a spring mechanism, due to which it can be fixed at any angle in a raised position. One of the main advantages of the Abat KPEM-250-O cooking boiler is the function of the rotary mechanism, which allows you to quickly and with a minimum of effort empty the cooking vessel. Add. tech. Specifications: Current type: three-phase with neutral, alternating Current frequency: 50 Hz Number of heating elements and (heating elements): 3 (9) pcs. Nominal power consumption of electromagnetic valves: (2x9) + 25 = 43 W Power consumption to maintain boiling temperature in stationary mode: 9 kW / h Time to heat water in a vessel to a temperature of 95 ° C, no more than: 80 min. Temperature control range of the steam-water jacket: from 20 to 120 ° C Working pressure in the steam-water jacket: 100 (0.1) kPa (kgf / cm2) Water pressure in the water supply system: 49/589 (0.5 / 6) kPa (kgf / cm2) Nominal volume: 250 l
| Main |
| Weight |
893 lb |
| Dimensions |
1460x1025x1735 in |
| Voltage |
400/230 V |
| Model |
110000019161 |
| Manufacturer |
Abat (Russia) |
| Power |
27 kW |
