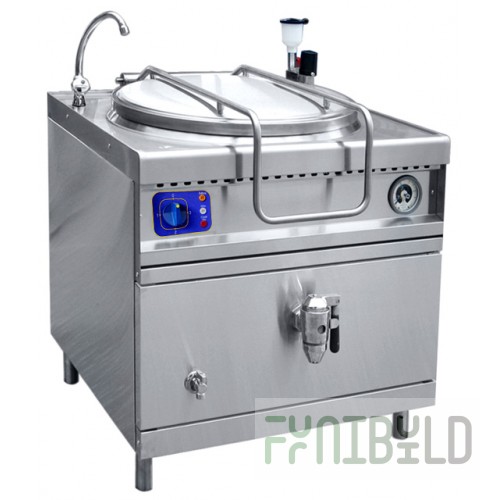

Abat KPEM-250/9T food boiler, 250 l, temp. 100 ° C, steam jacket, drain cock, 900 series, 840x1000x1290 (1190) in, 18.1 kW, 400/230 V The Abat KPEM-250/9T food boiler is designed for use in the catering industry, namely in canteens, restaurants and cafes. Since the volume of the cooking tank of the boiler of this model is 250 liters, the boiler can be used on the territory of large enterprises. The main purpose of the boiler is to prepare broths and soups, boil water to create drinks. The design of the Abat KPEM-250/9T food boiler consists of the following functional units: a cooking tank with a water jacket, a body, a lid, a control system and a rack of control and filling valves. The method of cooking in the Abat KPEM-250/9T cooking kettle is simple and extremely effective. The products are brought to readiness by processing with hot steam generated in the water jacket. Six powerful heating elements built into the body provide rapid heating of the water in the jacket. For quick draining of ready soups and broths, the cooking kettle has a drain cock located on the front side of the device. The kettle is connected to the water supply system. Water enters the cooking container through a separate tap located in the upper part of the kettle. The design of the body and container made of stainless steel provides reliable protection against corrosion. The height of the legs of the cooking kettle is adjustable. Additional technical characteristics: Current type: three-phase with neutral, alternating Current frequency: 50 Hz Power consumption of one heating element: 3 kW Number of heating elements: 6 pcs. Time for heating water in a vessel to a temperature of 95°C, no more than: 80 min. Working pressure in the steam-water jacket: up to 50 (0.50) kPa (kgf/cm2) Water pressure in the water supply system: 49/589 (0.5/6) kPa (kgf/cm2) Nominal volume: 250 l Main dimensions: 840x900x1190 in
| Main |
| Weight |
333 lb |
| Dimensions |
840x1000x1290(1190) in |
| Voltage |
400/230 V |
| Model |
110000007907 |
| Power |
18,1 kW |
