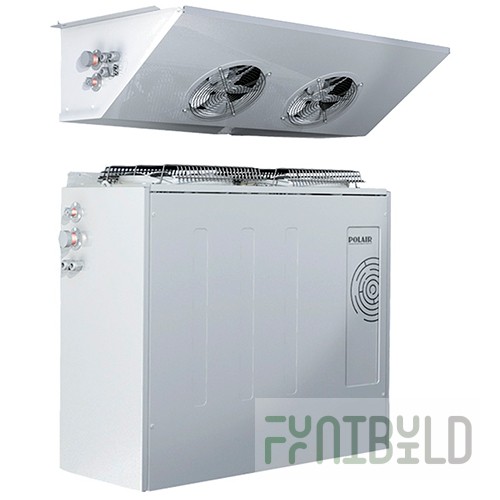

  • Universal split system for chambers V=24.2...56.4m3, SM 342 S (-5...+5C, external unit 813(971)х417х700mm, internal unit 833(905)х504х503mm)
Specifications Manufacturer: POLAIR Warranty period: 12 months Weight without packaging, kg: 102 Article: SM 342 S Power consumption per day, kW: 3.6 Input voltage, V: 380 Temperature conditions: universal Weight in packaging, kg: 177 Dimensions (LxWxH), in: 813(971)x417x700; 833 (905) х504 х503 Dimensions in packaging (L x W x H), in 1 piece: 1060 x 1060 x 950 Body material: Galvanized metal with polymer coating Cooling capacity, W: 4200 Volume in packaging, m3: 1.07 Performance, cu.m/h: 2440 Chamber volume, m3: 24.2-56.4 Universal split system for chambers V = 24.2 ... 56.4 m3, SM 342 S (-5 ... + 5C, external unit 813 (971) х417 х700 in, internal unit 833 (905) х504 х503 in) "POLAIR" Temperature range -5 ... + 5 ° C. Thermostat - electronic control unit. Coolant: R404a. The compressor-condenser unit and air cooler are filled with dry nitrogen. A capillary tube is used as a throttling device. A set of copper tubes in thermal insulation, 5 m long, a drain tube - 1 m (the ends of the tubes are sealed or crimped).
Main
Housing material Galvanized metal with polymer coating
Productivity, cubic m/h 2440
Warranty period 12 months
Manufacturer POLAIR
Input voltage, V 380
Temperature conditions universal
Cooling capacity, W 4200
Chamber volume, m3 24,2-56,4

Write a review

Note: HTML is not translated!
    Bad           Good

Universal split system for chambers V=24.2...56.4m3, SM 342 S (-5...+5C, external unit 813(971)х417х700mm, internal unit 833(905)х504х503mm)

  • Product Code: SM 342 S
  • Availability: In Stock
  • $15 771
