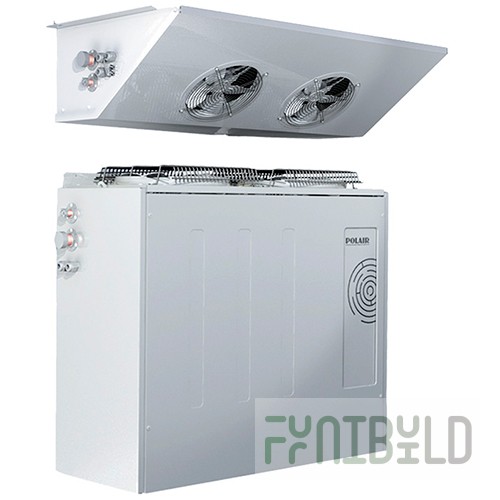

Specifications Manufacturer: POLAIR Warranty period: 12 months Weight without packaging, kg: 115 Article: SB 331 S Power consumption per day, kW: 3.2 Input voltage, V: 380 Temperature conditions: low-temperature Weight in packaging, kg: 190 Dimensions (LxWxH), in: 813(971)x417x700; 833 (905) х504 х503 Dimensions in packaging (L x W x H), in 1 piece: 1060 x 1060 x 950 Body material: Galvanized metal with polymer coating Cooling capacity, W: 3100 Volume in packaging, m3: 1.07 Performance, cu.m/h: 2440 Chamber volume, m3: 19.3-38 Low-temperature split system for chambers V = 19.3 ... 38.0 m3, SB 331 S (-15C, external unit 813 (971) х417 х700 in, internal unit 833 (905) 504 х 503 in) "POLAIR" Temperature range (not higher than) -15 ° C. Thermostat - electronic control unit. Refrigerant: R404a. The compressor-condenser unit and the air cooler are filled with dry nitrogen. A capillary tube is used as a throttling device. A set of copper tubes in thermal insulation, 5 m long, a drainage tube - 1 m (the ends of the tubes are sealed or crimped).
| Main |
| Housing material |
Galvanized metal with polymer coating |
| Productivity, cubic m/h |
2440 |
| Warranty period |
12 months |
| Manufacturer |
POLAIR |
| Input voltage, V |
380 |
| Temperature conditions |
low temperature |
| Cooling capacity, W |
3100 |
| Chamber volume, m3 |
19,3-38 |
