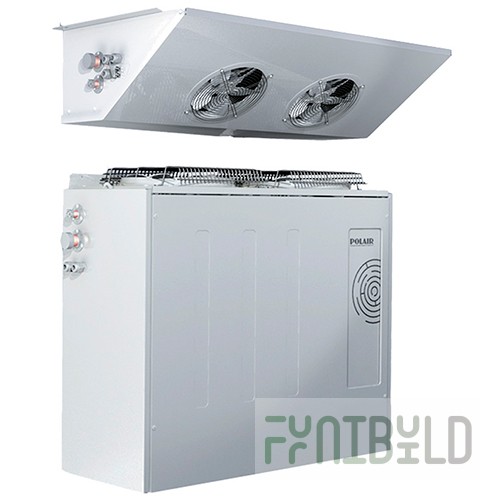

Specifications Manufacturer: POLAIR Country: RUSSIA Warranty period: 12 months Weight without packaging, kg: 102 Article: SВ 328 S Power consumption per day, kW: 2.5 Input voltage, V: 380 Temperature conditions: low-temperature Weight in packaging, kg: 177 Dimensions (LxWxH), in: 813(971)х417х700; 833 (905) х504 х503 Dimensions in packaging (L x W x H), in 1 piece: 1060 x 1060 x 950 Body material: Galvanized metal with polymer coating Cooling capacity, W: 2800 Volume in packaging, m3: 1.07 Product code: n0000093715 Performance, cu.m/h: 2440 Chamber volume, m3: 18-33 Low-temperature split system for chambers V = 18.0 ... 33.0 m3, SB 328 S (-15C, external unit 813 (971) х417 х700 in, internal unit 833 (905) х504 х503 in) "POLAIR" Temperature range (not higher than) -15 ° C. Thermostat – electronic control unit. Coolant: R404a. Compressor-condenser unit and air cooler are filled with dry nitrogen. A capillary tube is used as a throttling device. A set of copper tubes in thermal insulation, 5 m long, drainage tube – 1 m (the ends of the tubes are sealed or crimped).
| Main |
| Housing material |
Galvanized metal with polymer coating |
| Productivity, cubic m/h |
2440 |
| Warranty period |
12 months |
| Manufacturer |
POLAIR |
| Input voltage, V |
380 |
| Temperature conditions |
low temperature |
| Electricity consumption per day, kW |
2,5 |
| Cooling capacity, W |
2800 |
| Chamber volume, m3 |
18-33 |
