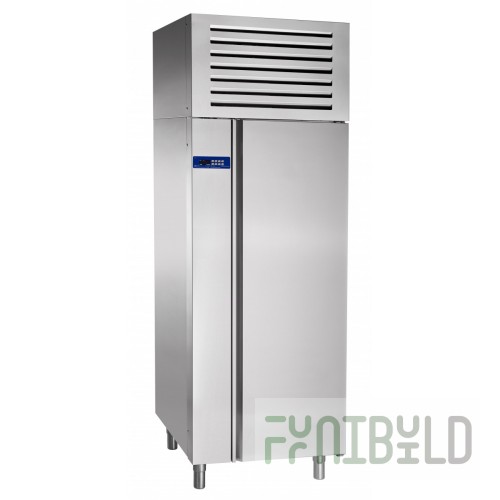

Shock freezer Abat SHOK-20-1/1T, 20 levels, 20xGN-1/1 or 20x600x400 in, t (-35°C), 0.64 m3, 810x780x2255 in, 4.5 kW, 400 V Shock freezer Abat SHOK-20-1/1T is used for high-speed cooling of products and freshly prepared dishes. The equipment has a massive floor-standing design, equipped with height-adjustable legs-supports. The device has a spacious chamber, which is designed for the installation of 20 shelves for placing gastronorm containers. Operating modes of the shock freezer Abat SHOK-20-1/1T: • accelerated cooling mode, • delicate cooling mode, • accelerated freezing mode, • delicate freezing mode. All modes are set with a specific temperature value using a highly sensitive probe. Upon completion of the operating mode, the cabinet is automatically switched to the mode for storing products at a set temperature. Other design features of the Abat SHOK-20-1/1T shock freezer: • the chamber is designed to accommodate 20 GN 1/1 gastronorm containers or 600x400 in baking sheets; • access to the chamber is through a hinged blind door; • the door is equipped with a seal, which is equipped with a magnetic insert, providing a reliable closing tightness; • safe freon R404a is used as a refrigerant; • defrosting of the cooling system is carried out automatically; • the body has a one-piece casting design with polyurethane foam stitching; • the cabinet has an electronic control panel to adjust the operating settings; • the air cooler is equipped with 3 fans. Add. tech. Specifications: Technical specifications: Power consumption: 4.5 kW/h Nominal voltage: 400 V Usable volume of the chamber: 0.64 m3 Air temperature of the useful volume: from +90 to -35°C Product cooling temperature: from +90 to +3°C Cooling time: 90 min Product freezing temperature: from +90 to -18°C Freezing time: 240 min Refrigerant number: R404A Total refrigerant mass: 3.6 kg Number of shelves in the chamber: 20 pcs. Size of used gastronorm containers/trays: GN 1/1 or 600x400 in Product weight for cooling: 50 kg Product weight for freezing: 50 kg Overall dimensions: 810x780x2255 in Weight: 220 kg
