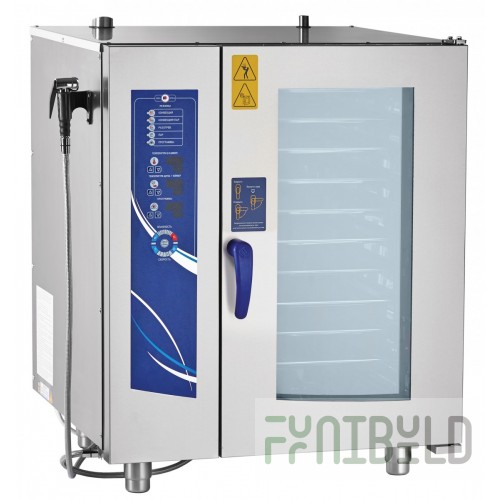

The Abat PKA 10-1/1PM2 combi steamer, steam generator, 10 GN 1/1, all stainless steel, without gastronorm containers, 3-channel probe, humidity control, 5 fan speeds, 110 programs, 840x800x1055mm, 12.5 kW, 400 V The Abat PKA 10-1/1PM2 combi steamer is designed to prepare dishes using the combined action of hot steam and heated air. The combi steamer can replace most of the cooking equipment in the kitchen, as it is universal and suitable for preparing a wide variety of dishes: from seafood to baked goods, from vegetable casseroles to berry pies. The combi steamer can be installed both independently and as part of a heating process line. The PKA 10-1/1PM2 combi steamer has the following distinctive design features: • the spacious chamber can accommodate 10 GN 1/1-65 in baking trays; • heating is provided by heating elements; • the door is double-glazed to prevent burns; • the oven door is ventilated for fast and efficient cooling; • the inner door glass is secured with hinges for easy cleaning from the inside; • the door handle has a stepped opening mechanism in 3 steps for safe release of steam from the chamber; • the oven chamber of the combi steamer is divided by a partition into 2 parts: working and technological; • air heating elements are installed around the built-in fan; • the chamber has right and left guides used to install baking trays; • moisture is collected in a removable tray; • the air temperature is maintained at one level using a controller; • a probe is used to monitor the temperature in the chamber. The Abat PKA 10-1/1PM2 combi steamer operates in the following modes: • "Convection", • "Convection + Steam", • "Heating with Steam", • "Steam", • "Program". All functional surfaces of the equipment (body, chamber, door surfaces) are made of stainless steel. Additional technical specifications: Nominal voltage: 400 V Current type: 3N/PE Current frequency: 50 Hz Nominal power consumption: 12.5 kW Nominal power consumption of fan motors: 0.37 kW Nominal power consumption of air heating elements: 12 kW Number of air heating elements: 3 pcs. Nominal power consumption of steam generator heating elements: 9 kW Number of steam generator heating elements: 3 pcs. Nominal power of lighting lamps: 2x25=50 W Illumination in the combi steamer chamber: 300 lux Maximum number of installed GN 1/1 gastronorm containers: 10 pcs. Time to heat up the combi steamer to a temperature of: +240°C (in convection mode) – 8 min : +100°C in steam generation mode – 9 min : +98°C in the “Steam at low temperature” mode - 9 min : +250°C in the “Convection + Steam” mode - 14 min Power consumption to maintain the temperature: +240°C (in convection mode) – 3 kW/hour : +100°C in steam generation mode – 3.3 kW/hour : +98°C in the “Steam at low temperature” mode - 3.2 kW/hour : +250°C in the “Convection + Steam” mode - 6 kW/hour Water pressure in the water supply system:from 100 to 600 kPa (from 1 to 6 kgf/cm²) Water consumption when operating in the "Steam" mode: 7 l/hour Overall dimensions: 800x840x1055 in Nominal design load on the functional container GN1/1x40: 3 kg Weight: 145 kg
