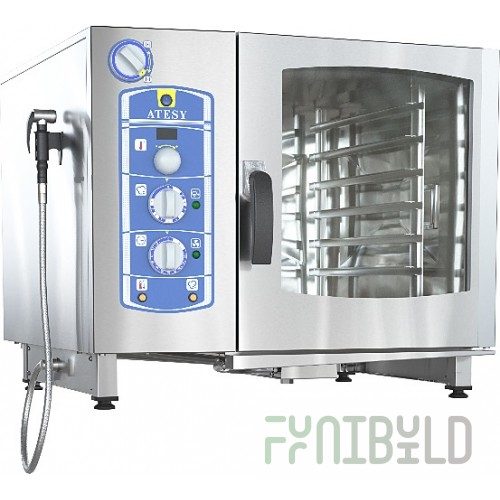

Convection oven RUBICON APK-6-1/1-I, 845 (945**)х780(845*)х740 in, 10 kW, 380V, 6 levels GN-1/1, injector Convection oven "Rubicon" APK-6-1/1-I is a universal high-performance oven for cooking various dishes in a steam-air environment in a professional kitchen. All parameters of the cooking process are set using a set of rotary knobs and an encoder. The device is equipped with an indicator showing the set and current temperature inside the chamber. Forced convection is provided by a high-speed fan inside the chamber. Heating is carried out using heating elements installed around the fan. Convection oven APK-6-1/1-I is a universal oven that uses the modes of a combination of steam and forced convection for cooking. Steam generation is of the injector type. The inner chamber of the combi steamer is hermetically sealed and has a drain hole at the bottom. The chamber is designed for 6 GN-1/1 gastronorm containers. The chamber door has double glass to protect service personnel from burns in case of accidental contact. The inner glass opens easily, which makes it possible to clean the glass on both sides. The door is equipped with a water collector at the bottom, collecting condensate. The door opening handle has a single-stroke mechanism, which allows for the "hands-free" mode. The combi steamer is made of high-quality stainless steel AISI304. It is equipped with a shower device with adjustable jet pressure. The support legs of the combi steamer are height-adjustable, which allows for compensation for uneven surfaces. ADVANTAGES: - Cook different dishes together - tastes and smells do not mix - Set cooking parameters in a few touches using the electromechanical control panel - Close and open the door with one movement - the lock mechanism is designed on the "hands-free" principle - For best results, regulate the humidity in the chamber from 0 to 100% with the option of manual steam supply - Save time when switching to another cooking mode - use the quick cooling function of the working chamber - Use the external hand shower with adjustable jet pressure OPERATING MODES: 1. Heat +30°C...+270°C; 2. Steam +100°C; 3. Heat + Steam +30°C...+270°C; 4. Quick cooling mode of the working chamber; 5. Manual wash mode. SPECIFICATIONS: Nominal voltage, V - 380 Current type - Three-phase alternating (with neutral) Current frequency, Hz - 50 Nominal power consumption, no more than, kW - 10 Nominal voltage on the heating element, V - 220±10% Maximum size of gastronorm containers - GN1/1 Number of levels - 6 Distance between levels, in - 68 Timer setting range - From 10 minutes to 120 minutes Temperature setting range in the chamber, °C - +30...+270 Nominal power of the heating element, kW - 9 Water pressure in the water supply network, kPa - 200...600 Maximum load on a gastronorm container, no more than, kg - 5 Maximum water consumption, l/hour - 2 Overall dimensions (length x width x height), in - 845 (945 **) x 780 (845 *) x 740
