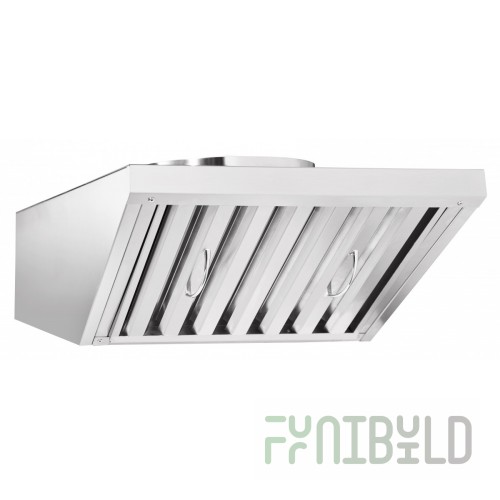

Hood for Abat ZVV-700 combi steamers, exhaust, built-in, for PKA6-1/2P with upper control panel, 520x922x286 in The hood for Abat ZVV-700 combi steamers is used in professional kitchens to remove fat and oils from the air, which inevitably spread during heat treatment of food products. The exhaust hood ensures complete neutralization of unpleasant, pungent odors, allowing you to maintain an optimal temperature and fresh air in the hot shop. This hood model is designed for use with the Abat PKA-6-1/2P combi steamer. Structurally, the Abat ZVV-700 wall-mounted exhaust hood consists of 3 functional elements: a durable steel body, a labyrinth filter, which is removable, and a fan. The combi steamer is connected to the exhaust hood using a power cable. The hood is attached to the rear wall of the heating equipment body using bolts and M5 corners. The Abat ZVV-700 exhaust ventilation hood operates on the following principle: the hood fan sucks in air saturated with fats and oils and feeds it into labyrinth filters, where they undergo the condensation process due to the temperature difference. Then the condensed liquid flows down the walls and gets into the grease collector bath, which is built into the body of the exhaust hood. The liquid collection bath is equipped with a drain pipe with a G 1/2'' thread type. Add. tech. Specifications: Filter type: labyrinth Installed rated current: fan motor – 0.85 A (0.12 kW), total - 0.85 A (0.12 kW) Current frequency: 50 Hz Air capacity: 1400 m3/h Air speed in the working area of ​​the hood: 0.4 m/s Number of installed fans: 1 pc. Number of installed labyrinth filters: 1 pc. Dimensions: 520x922x286 in Voltage: 230 V Weight: 20 kg Service life: at least 10 years
