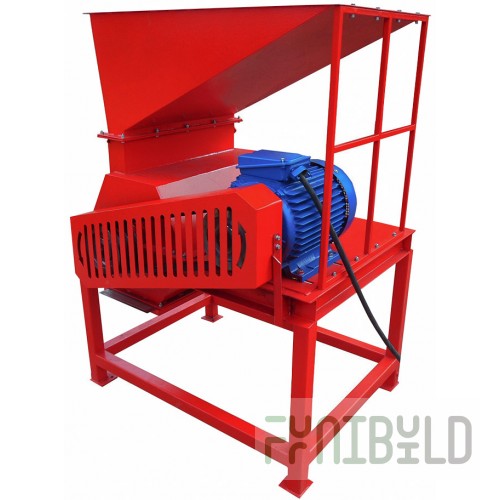

Hammer crusher Infel Molot-5000, up to 5000 kg/hour, receiving opening 80*350 in, input piece sizes up to 40 in, hopper 100 l, hammer speed 210 km/hour, 2900 rpm, 380 V, 7.5 kW, 1000*600*1600 in Hammer crusher Infel Molot-5000 is used for crushing and grinding spices, cereals, sugar, salt and similar homogeneous food mixtures to the state of fine homogeneous flour. This model is used for processing products in large batches. The productivity of the device can reach 5000 kg. per hour. The device can be used in food production facilities. The scope of application of the hammer crusher is not limited to the food industry: this machine can be used for crushing wood chips, plastic, brick, plaster, cardboard and similar materials. The base of the propulsion system is a rotor with fingers, on which at least 350 knives and hammers made of hardened metal are located. The high speed of rotation of the rotor, as well as the impact power, allow to effectively process the product into fine flour. In the lower part of the structure there is a sieve through which the crushed mass passes. Features: • the crusher has been successfully tested on 370 types of different raw materials; • the sieve and rotor can be quickly replaced if necessary; • the device can be built into the process line; • the body is made of durable steel. Additional technical characteristics: Productivity: up to 5000 kg/hour Hopper volume: 100 l Hopper type: universal with gate valve Cross-section at the inlet to the crusher: 205x350 in Fraction sizes at the outlet: from 80 microns to 10 in Number of hammers: 165 pcs. Number of knives: 150 pcs. Rotor diameter: 390 in Rotor speed: 2900 rpm Voltage: 380 V
| Main |
| Weight |
441 lb |
| Dimensions |
1000*600*1600 in |
| Voltage |
380 V |
| Manufacturer |
Infel (Russia) |
| Power |
7,5 kW |
