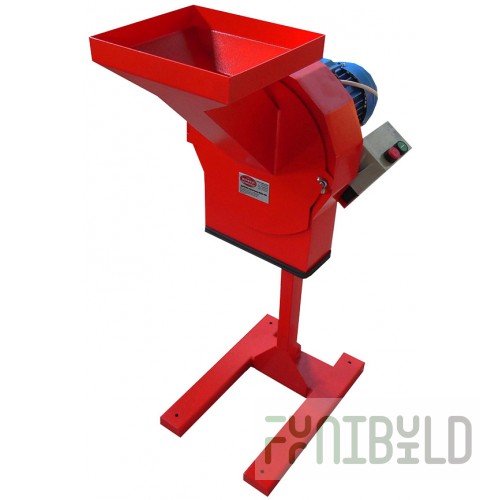

Hammer crusher Infel Molot-400, up to 400 kg/hour, receiving opening 100*50 in, size of pieces at the input up to 80 in, hopper 8 l, hammer speed 151 km/hour, 2850 rpm, 380 V, 2.2 kW, 600*400*1200 in Hammer crusher Infel Molot-400 is used in the workshops of food production enterprises for efficient and prompt crushing of any bulk and larger-sized products in order to obtain a homogeneous flour-like powder from them. The device copes perfectly with the processing of spices, salt, sugar, crackers, fruits of grain crops. In addition, this model of the crusher is widely used in non-food industries for processing solid materials such as plastic, plaster, cardboard, brick, etc. The crusher is equipped with a highly efficient crushing mechanism, which consists of a rotor with fingers, each of which has 9 hardened knives or hammers fixed to it. The knives have a serrated structure, which allows them to cut large-sized fibrous products. The hammers exert a high load and maximum pressure on the product, which allows for easy crushing of its structure. Operating diagram of the Infel Molot-400 machine: • the operator pours the processed product into the loading compartment (optionally, a hopper with a dispenser can be installed, which will automatically and evenly feed the mass to the crushing organs); • knives and hammers ensure rapid crushing of all incoming products; • after crushing, the mass is sifted through a built-in sieve; • at the end of the working cycle, the crushed mass enters the bag, from where it can be poured into other containers. The Infel Molot-400 crusher has been tested in various production conditions on different types of raw materials (up to 420 types of food and non-food products). The machine is conveniently designed for maintenance and cleaning. The simplicity of the design ensures ease of operation. The machine is made of high-quality, high-strength materials. The body is made of steel. The hammers are made of manganese steel. Additional technical characteristics: Productivity: up to 400 kg / h Dimensions of the receiving opening: 100x100 in Size of pieces at the input: up to 80 in Size of the fraction at the output: from 80 microns to 10 in Hopper volume: 8 l Rotor diameter: 350 in Number of hammers: 18 pcs. Number of knives: 18 pcs. Impact energy: 500 J Rotor speed: 2850 rpm Voltage: 380 V Power consumption: 2200 W
| Main |
| Weight |
66 lb |
| Dimensions |
600*400*1200 in |
| Voltage |
380 V |
| Manufacturer |
Infel (Russia) |
| Power |
2,2 kW |
