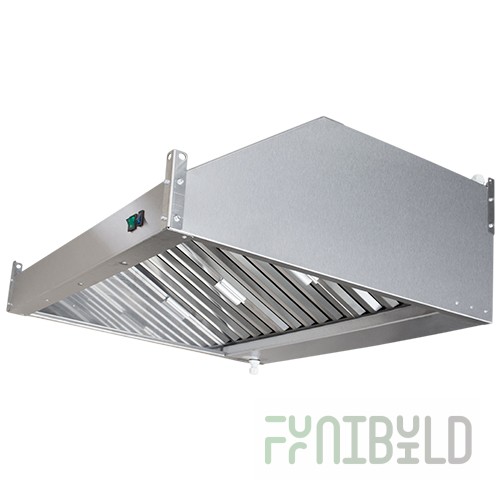

Specifications Manufacturer: FOOD TECHNOLOGIES Country: RUSSIA Warranty period: 12 months Weight without packaging, kg: 38 Installation type: Wall-mounted Article: ЗВэ-П14/09 Length, in: 1400 Width, in: 900 Height, in: 350 Backlight: Yes Exhaust fan: Yes OKPD2: 27.51.15 Input voltage, V: 220 Weight in packaging, kg: 38.5 Dimensions (LxWxH), in: 1400х900х350 Dimensions in packaging (LxWxH), in 1 place: 1440х950х380 Nominal power, kW: 0.09 Volume in packaging, m3: 0.48 Wall-mounted exhaust hood with grease-catching labyrinth filter, electric fan and backlight ЗВэ-П14/09 1400х900х350mm Exhaust hood The wall-mounted hood is made entirely of stainless steel and has a rigid, frameless design. Inside the housing there are labyrinth-type filters, an exhaust electric fan and a fluorescent lamp. Air capacity: 1660 m3/h. Efficiency of air purification from aerosols that have passed through the filter labyrinths (not less than): 58%. At the bottom of the hood there is a sealed bath where oil, grease and water from the filters drain. The bath has a drain hole for sanitary cleaning. Complete set: drain flange - 1 pc., labyrinth filter 300 in - 2 pcs., labyrinth filter 400 in - 2 pcs. Supplied assembled. Packaging: stretch film and cardboard box.
| Main |
| Rated power, kW |
0,09 |
| Warranty period |
12 months |
| Manufacturer |
FOOD TECHNOLOGY |
| Input voltage, V |
220 |
| Backlight |
Yes |
| Country |
RUSSIA |
| Length, in |
1400 |
| OKPD2 |
27,51,15 |
| Height, in |
350 |
| Installation type |
Wall |
