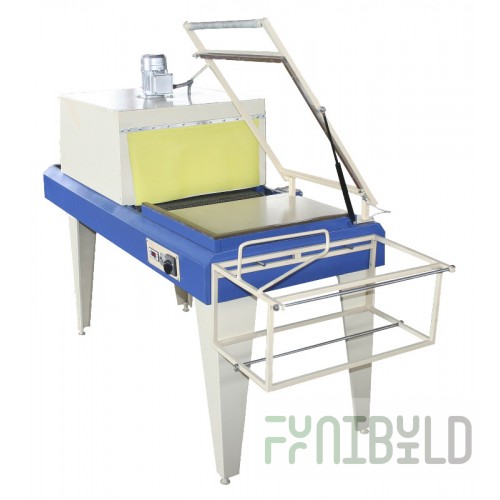

Heat shrink packaging machine StanGrad TPC-550, capacity 300 packs/hour, 200ºС, PVC, PE, PP film, max package dimensions 400х300х130mm, film width up to 650mm, 4.2 kW, 380 V, 2100х800х1400 in Heat shrink packaging machine StanGrad TPC-550 allows placing food products in heat shrink film and packing products of any type: from bakery and confectionery products to bulk goods: cereals, sugar, salt, etc. Structurally, the machine consists of the following parts: • compartment for placing products in film; • frame structure for cutting off excess film; • compartment for thermal shrinkage of film over the entire volume around the product; • conveyor belt along which the products move in the heat shrink compartment; • control system; • 4-support corner design. Heat shrink packaging machine StanGrad TPC-550 is suitable for using various types of film: different density and width. Additional technical characteristics: Productivity: up to 300 packs/hour Voltage: 380 V Current frequency: 50 Hz Installed power: 8 kW Power consumption: 3.5 kW Maximum package dimensions: 400x300x130 in Maximum temperature in the heat chamber: up to +200 ° C Climatic version (UHL according to GOST 15): 150-69 Type of film used: PVC, PE, PP Width of film used: up to 650 in Size of shrink chamber: 750x470x300 in Overall dimensions: 2100x800x1400 in Weight: 90 kg
| Main |
| Weight |
198 lb |
| Dimensions |
2100x800x1400 in |
| Voltage |
380 V |
| Manufacturer |
StanGrad (Russia) |
| Power |
4,2 kW |
