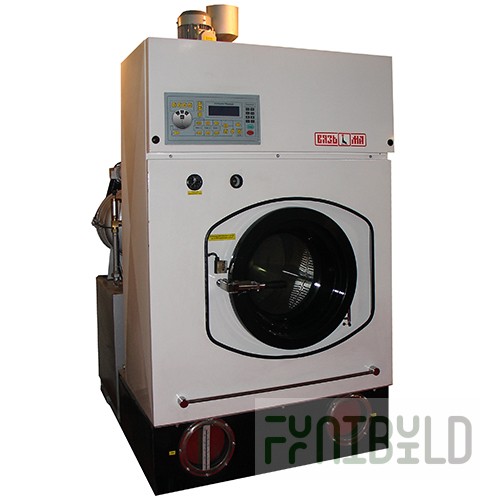

Specifications Manufacturer: VYAZMA Country: RUSSIA Warranty period: 12 months. Weight without packaging, kg: 1000 Article: LVH-8 Loading capacity, kg: 8 Drum dimensions (diameter x depth), in: 650x450 Weight in packaging, kg: 1100 Dimensions (LxWxH), in: 1595x1000x1880 Dimensions in packaging (LxWxH), in 1 piece: 1850x1240x2170 Voltage/frequency: 380 V Product code: n0000093694 Dry dry cleaning machine LVH-8 (1595 (1850)x1000 (1240)x1880 (2170)mm, loading capacity 8kg, 40/400 rpm, 380V, weight 1000 (1100) kg) Loading weight, kg 8 Dimensions Inner drum, in 650x450 Drum rotation speed, cleaning/spinning, rpm 40/400 Number of tanks 3 Capacity of tank 1, l 80 Capacity of tank 2, l 120 Capacity of tank 3, l 115 Distillate capacity, l 62 Cooling of distiller/solvent with water Cooling of drying vapors refrigerator Control type automatic Number of control programs 10/30 Cycle time, min. 40* Heating type electric Power, kW drum drive motor 0.4/1.5 filter motor 0.55 pump motor 0.75 fan motor 0.75 distiller heating (heating element) 5.4 drying heating (heating element) 7.2 refrigerator compressor 1.6 Steam consumption (steam heating) kg/cycle 3.3 Water consumption, l/cycle 110 Air consumption, m³/min 0.01 Solvent consumption (from total drum load) ≤ 3% Electric power consumption (steam heating), kWh/cycle 0.82 Electric power consumption (electric heating), kWh/cycle 3.5 Overall dimensions (in packaging), in length 1595 (1850) width 1000 (1240) height 1880 (2170) Weight (in packaging), kg 1000 (1100) Voltage, V 380±5% Material of manufacture tanks galvanized steel outer drum stainless steel inner drum stainless steel trap stainless steel distiller stainless steel cooler and water separator stainless steel air vents stainless steel
| Main |
| Voltage/frequency |
380 V |
| Warranty period |
12 months |
| Manufacturer |
VYAZMA |
| Country |
RUSSIA |
| Loading, kg |
8 |
| Drum dimensions (diameter x depth), in |
650x450 |
