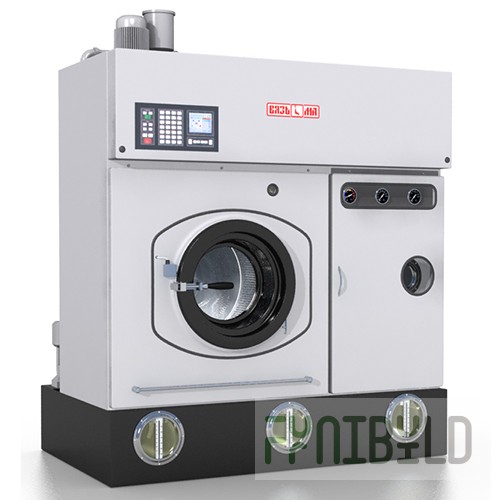

Specifications Manufacturer: VYAZMA Country: RUSSIA Warranty period: 12 months. Weight without packaging, kg: 2300 Article: LVH-22P Load, kg: 22 Drum dimensions (diameter x depth), in: 940x600 Weight in packaging, kg: 2575 Dimensions (LxWxH), in: 1600x1970x2320 Dimensions in packaging (LxWxH), in 1 piece: 1850x2220x2380 Voltage/frequency: 380 V Product code: n0000093703 Dry dry cleaning machine LVH-22P (1600 (1850)x1970 (2220)x2320 (2380)mm, steam, loading 22kg, 40/400 rpm, 380V, weight 2300 (2575)kg) Loading weight, kg 22 Dimensions of inner drum, in 940x600 Drum rotation speed, cleaning/spinning, rpm 40/400 Number of tanks 3 Distiller capacity, l 260 Cooling of distiller/solvent with water Cooling of drying vapors refrigerator Control type automatic Number of control programs 30 Cycle time, min. 40 Heating type electric / steam Power, kW washing motor 3 filter motor 0.55 pump 0.75 fan motor 1.5 distiller 13.5/- drying 13.8/- refrigerator compressor 5.83 Steam consumption (steam heating) kg/cycle -/16 Water consumption, l/cycle 330 Air consumption, m³/min 0.01 Solvent consumption (from the total drum load) ≤ 3% Electric power consumption (steam heating), kWh/cycle 2.5 Electric power consumption (electric heating), kWh/cycle 10 Overall dimensions (in packaging), in length 1600 (1850) width 1970 (2200) height 2320 (2380) Weight (in packaging), kg 2300 (2575) Voltage, V 380±5% Material of manufacture stainless steel tanks steel outer drum stainless steel inner drum stainless steel trap stainless steel distiller stainless steel cooler and water separator stainless steel air vents stainless steel
| Main |
| Voltage/frequency |
380 V |
| Warranty period |
12 months |
| Manufacturer |
VYAZMA |
| Country |
RUSSIA |
| Loading, kg |
22 |
| Drum dimensions (diameter x depth), in |
940x600 |
