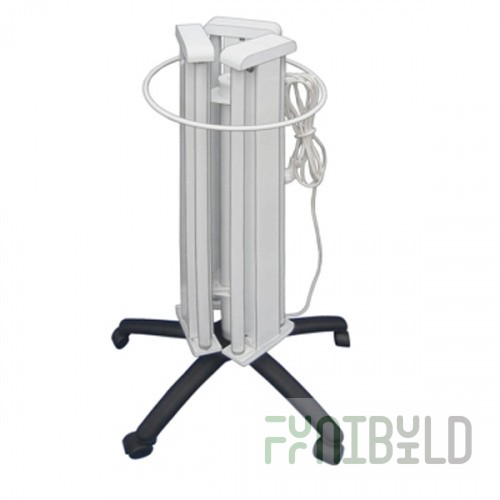

Specifications Manufacturer: ELID Article: OBPe-450 Medical bactericidal irradiator "AZOV" OBPe-450 (mobile, six-lamp, without lamps and starters) Designed for rapid disinfection of air and surfaces in rooms where the use of wall or ceiling types of irradiators is difficult or ineffective. Due to its design and ease of movement, it is recommended for sequential disinfection of several rooms or for use in large rooms without the presence of people. The irradiator is distinguished by its simple design and attractive design. Five swivel wheels at the base of the irradiator allow it to be easily moved around the premises. Easily removable housing covers provide easy access to the electrical components of the irradiator, allowing for quick maintenance. Scope of application - medical and children's institutions (clinics, maternity hospitals, sanatoriums, etc.), as well as, if necessary, industrial, administrative, public and warehouse premises. Covered with powder enamel (increases corrosion resistance) A bactericidal lamp is installed in the irradiator, emitting ultraviolet light with a wavelength of 253.7 nm, close to the maximum bactericidal action of radiant energy. Due to the fact that radiation with such a wavelength causes photophthalmia and skin erythema, the irradiator is equipped with a screen from the action of direct rays, which allows irradiating the upper layers of air in the room in the presence of people, in addition to an open lamp that quickly disinfects the air and is designed to irradiate a room free of people. The lower layers of air are disinfected by convection when the lamp with a screen is operating. Irradiators must be placed no lower than 2 m from the floor; the use of an unshielded lamp in the presence of people is strictly prohibited. Attention! The use of ultraviolet irradiators requires strict adherence to safety measures that exclude possible harmful effects on humans of ultraviolet bactericidal radiation, ozone and mercury vapor. Irradiance at a distance of 1 m, not less than, W/m2: 4.0 Number of bactericidal lamps: 6 Radiation source: bactericidal lamp TUV-30W (UV-C) by Philips, - service life, h: 8000 - rated lamp power, W: 6x30 It is allowed to use lamps of a different type with similar technical requirements Starter by Philips or similar, V: S10 (220) Bactericidal flux utilization factor, Kf: 0.9 Irradiator performance at bactericidal efficiency of 99% (for Staphylococcus aureus), Pr, m3/h: 850 Power consumption, not more than, W: 390 Nominal voltage, V: 220±22 Frequency, Hz: 50±0.4 Electrical safety class according to GOST R 50267.0-92: 1 type B Irradiator service life, years: 5 Climatic version, GOST 15150-69: UHL 4.2 Overall dimensions, no more than, in: Ø of five-beam / height of irradiator: Ø650 / 1130 Weight of irradiator in assembled form, no more than, kg:11 Packing 2 places Place 1/2 Overall dimensions of the package (mm) LxBxH: 1050х198х232 Weight of the package (kg): 8.4 Volume of the package (m3): 0.048 Place 2/2 Overall dimensions of the package (mm) LxBxH: 608х604х108 Weight of the package (kg): 2.5 Volume of the package (m3): 0.04
