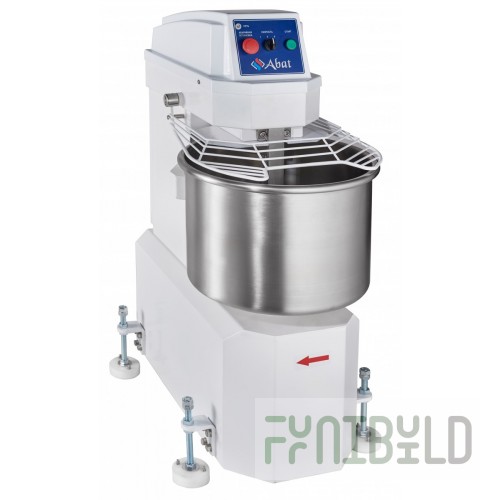

Spiral dough mixer Abat TMS-40NN-2C, 2 speeds, 40l bowl, 150 kg/hour, belt-chain drive type, electromechanical, non-removable bowl, 555x840x(1100)1150mm, 1.5/2.5 kW, 400V Spiral dough mixer TMS-40NN-2C is a universal dough mixing machine designed for preparing many different types of dough: yeast, yeast-free, steep, biscuit, rich, unleavened, puff pastry and many others. The machine is designed for use in large food production facilities, where the production of bakery products is the main specialization of the enterprise or one of the main production tasks. The TMS-40NN-2C spiral dough mixer has a powerful two-speed motor responsible for the movement of the kneading element at a speed of 115 and 230 revolutions per minute. At the same time, the bowl also rotates during the operation of the device, but in the opposite direction: at a speed of 10 or 20 revolutions per minute (depending on the selected speed mode). The TMS-40NN-2C dough mixer is equipped with a non-removable bowl and a non-lifting (fixed) crossbar, in which the kneading element is attached. The capacious bowl has rounded corners in the base space for easy cleaning. The bowl volume allows you to simultaneously prepare up to 8 kg of steep dough and up to 25 kg of yeast dough. The duration of the kneading process at maximum bowl load is only 10 minutes. The hourly productivity of the equipment reaches 150 kg of dough. The TMS-40NN-2C dough mixer has an electromechanical control panel. The kneading organ of the machine is given a spiral shape, allowing it to better capture all the ingredients placed in the bowl. During operation, high-quality mixing of the formed dough mass is guaranteed. The dough mixing machine TMS-40NN-2C is made in accordance with international sanitary and hygienic standards. In particular, all metal parts of the equipment that directly contact with products during operation are made exclusively of durable and high-quality stainless steel grade AISI 304. The design is equipped with unscrewing support legs that allow you to easily change the height of the bowl. Industrial dough mixing machine TMS-40NN-2C is the best choice for modern bakeries and confectionery enterprises! Add. tech. Specifications: Current type: three-phase alternating with neutral Current frequency: 50 Hz Nominal power consumption of the electric motor (spiral): 1 speed - 1.4 kW, : 2 speed - 2.36 kW Bowl capacity: 40 l Number of speeds: 2 Norm of loading ingredients for dough: yeast - 25 kg : steep - 8 kg Duration of kneading one portion of dough: 10 min Productivity: 150 kg / hour Availability of wheels for moving / installing on the workplace: no Number of revolutions of the kneading organ (spiral): 1 speed - 115 rpm : 2 speed - 230 rpm Number of revolutions of the bowl: 1 speed - 10 rpm : 2 speed - 20 rpm Drive type: belt and chain Control type: manual Availability of timers for both speeds:no Bowl type: non-removable Crossbar type: non-lifting Overall dimensions: 555x840x1100(1150) in Nominal power consumption: 1 speed – 1.5 kW: 2 speed – 2.5 kW Nominal voltage: 400 V Weight: 135 kg
