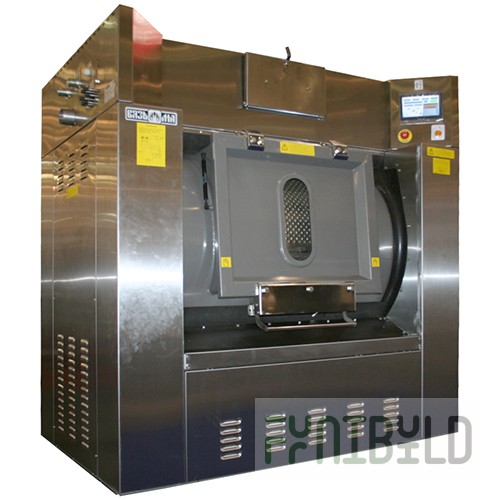

Specifications Manufacturer: VYAZMA Country: RUSSIA Warranty period: 12 months Weight without packaging, kg: 838 Article: LB-40P.22241 Drum capacity, l: 400 Load, kg: 40 Input voltage, V: 380 Weight in packaging, kg: 878 Dimensions (LxWxH), in: 1090x1600x1800 Dimensions in packaging (LxWxH), in 1 place: 1220x1800x1970 Body material: Stainless steel Nominal power, kW: 6 Product code: n0000091075 Washing machine LB-40P "barrier" (1090 (1220)x1600 (1800)x1800 (1970)mm, load capacity 40kg, 380V, 0.7-0.9 (300) rpm, weight 838 (878) kg) Separation of working areas into "clean" and "dirty"; Microprocessor control; Spring suspension; Frequency converter; Lining, inner and outer drums made of stainless steel. Barrier-type machines of the LB series, automated washer-spinners for industrial use, are designed for washing, rinsing, spinning and shaking out linen in accordance with the current Rules for the technological processing of linen at laundries connected to the industrial power grid. Batch-action machines, two-support, single-section, with side loading and unloading of linen. The design of the machines provides for loading and unloading linen from different zones (in rooms separated by a wall) in order to comply with sanitary and hygienic standards for clean linen in medical institutions, or in institutions of the nuclear, chemical, electronic industries and other industries. The automatic system with a touch control panel has a memory capacity of up to 50 washing programs, 10 of which are programmed at the factory, and the rest can be configured by the user himself, at his own discretion. This controller is adapted to connect and control a system of dosing pumps for liquid detergents. Nominal loading weight, kg, no more than 40 Geometric volume of the inner drum, dm3 400 Separation factor: during washing 0.7–0.9 during spinning 300 Heating type electric steam Nominal power, kW, no more than: drive electric motor 6.0 heating elements 30 no Residual moisture content of laundry, %, no more than 50 Loading height, in, no more than 850 Method of loading and unloading laundry manual Type of process control automatic Overall dimensions, (in packaging) in, no more than length (depth) 1090 (1220) width 1600 (1800) height 1800 (1970) Weight (in packaging) kg, no more than 845 (885) 838 (878) Connection of dosing pumps 6* Specific consumption Specific power consumption per cycle, kW. h/kg, no more than** 0.31 0.06 Specific water consumption per cycle, dm3/kg, no more than** 16.6 Specific steam consumption per cycle, dm3/kg, no more than** No 0.9 Requirements for conductive communications Nominal bore of cold and hot water valves, in 25 Nominal bore of steam valve, in No 15 Outlet diameter of drain pipe, in 74 Steam pressure, MPa No 0.2-0.4 Cold and hot water pressure, MPa 0.2-0.4 Mains voltage, V 380 ± 10%
