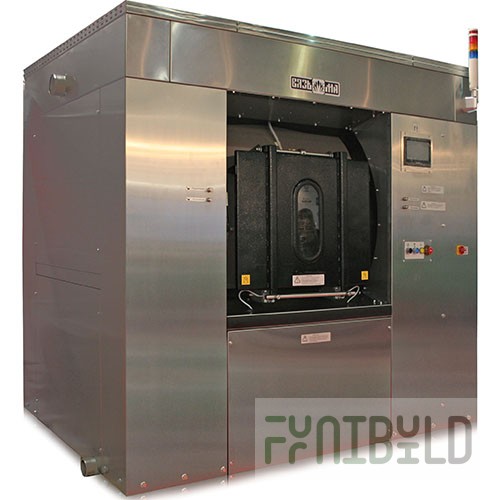

Specifications Manufacturer: VYAZMA Country: RUSSIA Warranty period: 12 months. Weight without packaging, kg: 2550 Article: VB-70.22241 Drum volume, l: 700 Loading capacity, kg: 70 Weight in packaging, kg: 2890 Dimensions (L x W x H), in: 1500 x 2100 x 2000 Dimensions in packaging (L x W x H), in 1 piece: 1810 x 2960 x 2300 Voltage/frequency: 380 V Volume in packaging, m3: 12.32 Washer-spinner VB-70 (1500 x 2100 x 2000 in, loading capacity 70 (2 x 35) kg, automatic, electric, sensor, stainless steel, 380 V, weight 2550/2500 kg) VB-70.22241 2-support, Barrier, with 2 drum sections; Pneumatic control (compressed air): drum unit suspension (pneumatic springs); Frequency drive; Touch controller, up to 999 washing programs with external media; Connection of liquid detergent dispensers; Stainless steel linings; "Closed" drain (side branch pipe); Manual control of loading and unloading Barrier-type machines of the VB series, automated industrial washer-spinners, are designed for washing, rinsing, spinning and shaking out linen in accordance with the current Rules for the technological processing of linen at laundries connected to the industrial power grid. Batch-action machines, two-support, two-section, with side loading and unloading of linen. The design of the machines provides for loading and unloading linen from different zones (in rooms separated by a wall) in order to comply with sanitary and hygienic standards for clean linen in medical institutions, or in institutions of the nuclear, chemical, electronic industries and other industries. The automatic system with a touch control panel has a memory capacity of up to 999 washing programs with an external drive, 10 of which are programmed at the factory, and the rest can be customized by the user at his own discretion. This controller is adapted to connect and control a system of dosing pumps for liquid detergents. Nominal loading weight, kg, no more than 70 (2x35) Geometric volume of the inner drum, dm3 700 Drum volume: diameter x depth, in 1100x740 Type of process control automatic Separation factor, rpm during washing 0.9 (38) during spinning 300 (700) Type of heating electric steam Nominal power, kW of the drive electric motor 15 heating elements 60 - Connection of dosing pumps, number of pipes for liquid detergents 6 Residual moisture, % 50 Overall dimensions of the case (with protruding parts), in length (depth) 1500 width 2100 height 2000 Weight, kg 2550/2500 Specific consumption Specific energy consumption per cycle, kW. h/kg, no more than 0.55 0.1 Specific water consumption per cycle, dm3/kg, no more than 16** Specific steam consumption per cycle, dm3/kg, no more than - 0.9 Requirements for conducting communications Nominal bore of cold and hot water valve, in 40 Nominal bore of steam valve, in - 15 Nominal bore of drain pipe valve, in 76 Cold and hot water pressure, MPa 0.2-0.4 Steam pressure, MPa - 0.2-0.4 Mains voltage, V 380 ± 10%
