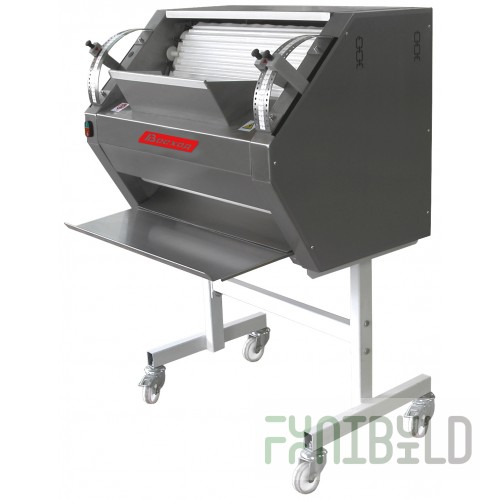

Baguette forming machine Voskhod-TZ-5, 1200 pcs./hour, length of blanks 700 in, 1.2 kW, 380 V, 960x800x1453 in Baguette forming machine Voskhod-TZ-5 is designed for production of baguettes and loaves. The machine has reliable and ergonomic design and impeccable quality of components and functional units. The model is perfect for joint operation with other bakery equipment from Russian and foreign manufacturers. The Voskhod-TZ-5 machine is recommended for operation as part of technological lines with a total capacity of at least 1200 loaves or baguettes per hour. The Voskhod TZ-5 machine has the following characteristic design features: • the equipment body is made of stainless steel; • the rolling unit structurally consists of 2 rolling and 1 feeding rolls, which are entirely made of polymer material; • the forming web belt is made of woolen fabric. The adjustment system is made in the most convenient design, with the help of which you can adjust: • the gap between the rolling rollers; • the gap between the forming conveyors at the entrance and exit. The machine is installed on a mobile stand equipped with wheels. Additional technical characteristics: Maximum length of dough pieces: 700 in Weight of dough pieces: from 0.05 to 2 kg Productivity: 2000 pcs. Nominal power consumption: 1.2 kW Nominal voltage: 380 V Current type: 3NPE~ Current frequency: 50 Hz Overall dimensions: 960x800x1453 in Weight: 210 kg
| Main |
| Weight |
463 lb |
| Dimensions |
960x800x1453 in |
| Voltage |
380 V |
| Model |
V 346,00,00,000 |
| Manufacturer |
Voskhod (Russia) |
| Power |
1,2 kW |
